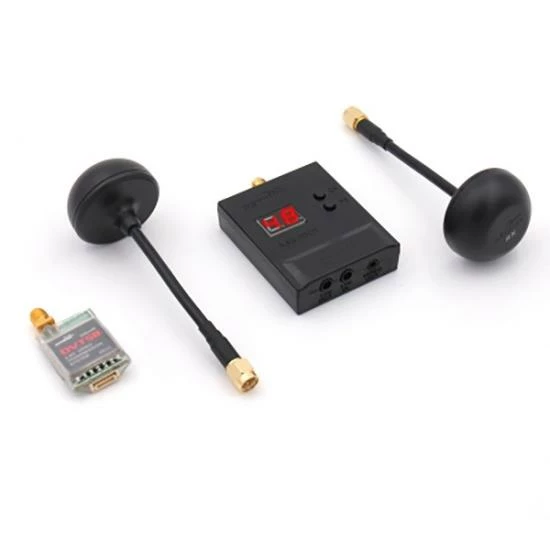

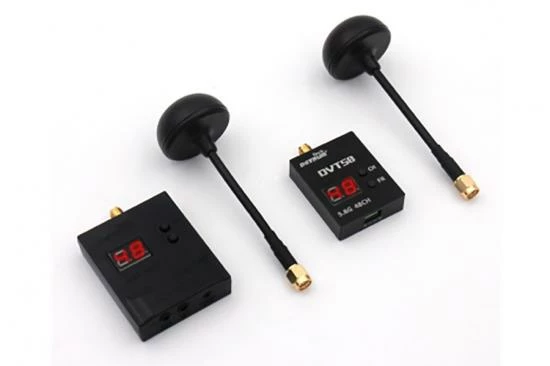

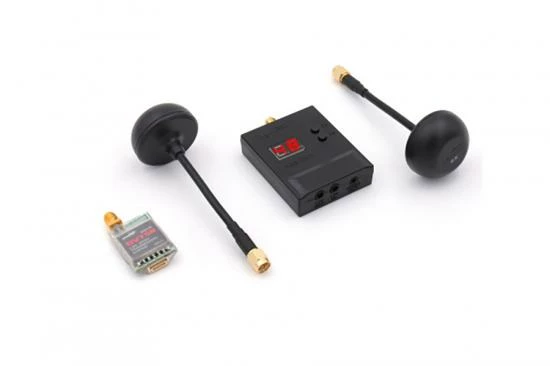

Dynam Detrum 5.8G 25Mw Video Fpv Transmission Kit (Tx/Rx)

DYNAM DETRUM 5.8G 25mW VIDEO FPV TRANSMISSION KIT (TX/RX)

This is a 5.8G omnidirectional mushroom antennas set for FPV use. Tx is the transmitting antenna, Rx is the receiving antenna, with SMA-Male connector. When using with the 5.8G transmitter and receiver, can improve the video stability and avoids multipath effect and tiny blind angle.

Specification

• Frequency: 5.4G-5.95 GHz
• Impedance: 50Ω Nominal
• V.S.W.R: 1.92:1 Max
• Return Loss: -10 dB Max
• Radiation: Omnidirectional
• Gain: 2dBi
• Polarization: Linear, Vertical
• Connector: SMA-Male
• Antenna Material: TPE / PC / Cu
• Cable Type: RG-141
• Operating Temp.: -10 ~ +60?
• Storage Temp.: -10 ~ +70?
