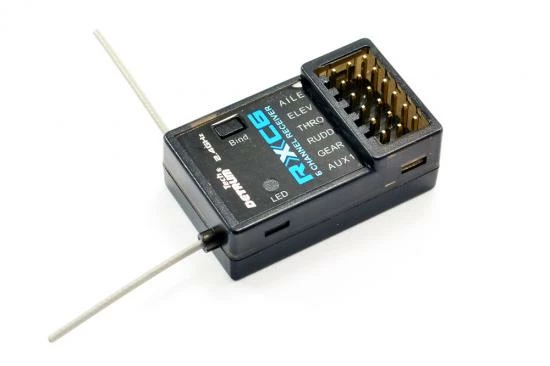

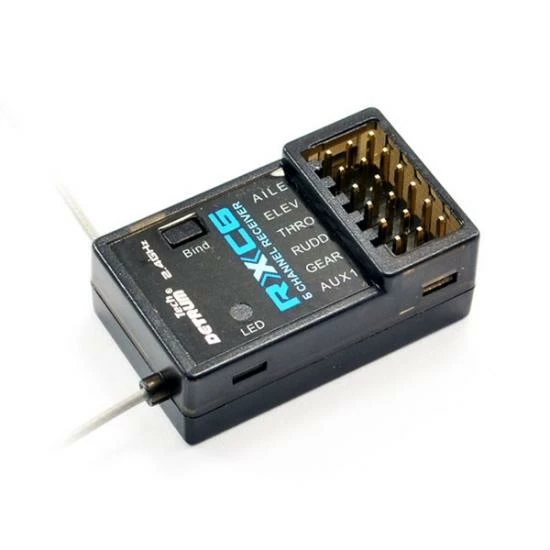

Dynam Detrum Rxc6 6Ch 2.4G Mini Receiver

DYNAM DETRUM RXC6 6CH 2.4G MINI RECEIVER

Main Control IC Using ARM M3 processor, provides strong resolution capability.

Mini Size The size of RXC6 is super small (33*20mm), it is more suitable for small-scale aircraft which can fly in the park.

High Sensitivity Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology, the receiver has high sensitivity and strong anti-interference capability, can receive signal stably for more than 1,000 meters in the air.

Diversity Antenna By using diversity antenna, can automatically switch the signals to ensure the stability of the received signal.

Unique ID Code Each transmitter has an individually assigned, unique ID code. Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.

Fail Safe When the aircraft flies out of range, the receiver cannot receive a valid RF signal from the transmitter, and will move the servos to predefined position.

Spec Check:

• Dimension: 20*33*12.5mm
• Weight: 6.9g
• Frequency: 2.4GHz
• Communication Distance: >1.1km
• Power Supply: 3.6V~16V
• Output Signal: PWM
